RG59 vs. RG6: Which One Do You Need for Your CCTV or Antenna Project?
G59 vs. RG6: Which One Do You Need for Your CCTV or Antenna Project?
April 20, 2026
When it comes to coaxial cables for CCTV cameras, satellite TV, or over‑the‑air antennas, two names dominate the conversation: RG59 and RG6. Both have been around for decades, but they are not interchangeable. Choosing the wrong one can result in poor image quality, signal loss, or the need to re‑cable an entire project.
In this guide, we break down the key differences, performance trade‑offs, and real‑world applications—so you can specify the right cable with confidence.

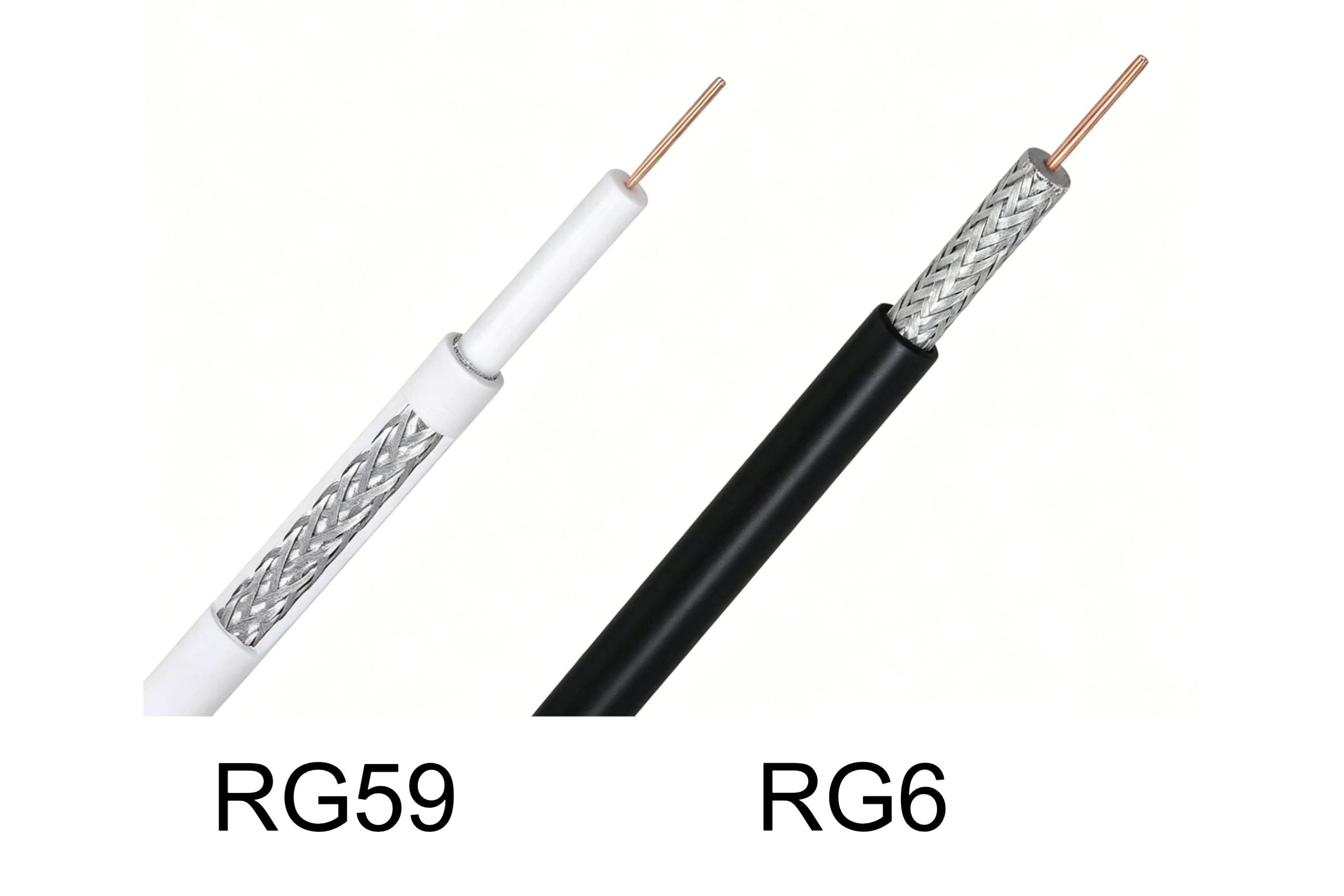

Quick Comparison: RG59 vs. RG6
| Specification | RG59 | RG6 |
|---|---|---|
| Center conductor gauge | 20–22 AWG (thinner) | 18 AWG (thicker) |
| Impedance | 75 ohms | 75 ohms |
| Shielding | Single or dual braid (basic) | Dual braid + foil (better) |
| Signal loss at 1 GHz | ~15–20 dB per 100 ft | ~10–12 dB per 100 ft |
| Maximum analog video distance | ~200–300 ft (60–90 m) | ~500–600 ft (150–180 m) |
| Best for | Short CCTV runs, patch cables, legacy systems | Long CCTV runs, satellite, cable TV, HD‑over‑coax |
Detailed Breakdown
RG59 – The Traditional Choice for Short Runs
Construction: RG59 has a thinner center conductor (typically 20 or 22 AWG) and lighter shielding. It is more flexible and easier to terminate, especially with older BNC or RCA connectors.
- Advantages: Lower cost, more flexible, easier to work with in tight spaces.
- Disadvantages: Higher signal loss over distance, less protection against interference, not suitable for long cable runs or high frequencies (e.g., HD‑TVI, 4K CCTV).
- Best applications: Short analog CCTV runs (under 200 ft), jumpers, patch cables, or retrofitting older systems where RG6 is too thick.
RG6 – The Modern Standard for Longer Distance and Higher Frequencies
Construction: RG6 uses a thicker 18 AWG center conductor and multiple shielding layers (often dual braid plus foil). This combination reduces signal loss and blocks external interference more effectively.
- Advantages: Lower signal loss per foot, handles higher frequencies (up to 3 GHz or more), better shielding against EMI, supports longer cable runs.
- Disadvantages: Slightly stiffer and less flexible, slightly more expensive, may require different connectors (though many BNC/RCA connectors are now designed for both).
- Best applications: Most new CCTV installations (especially HD‑over‑coax like HD‑TVI, CVI, AHD), satellite TV (DirecTV, Dish), cable modems, over‑the‑air antennas, and any run over 200 feet.
When to Choose RG59
- Your cable run is short (under 200 ft / 60 m).
- You are using older analog cameras (960H or standard definition).
- You need maximum flexibility for tight bends or patch panels.
- Budget is extremely tight and signal quality is not critical.
When to Choose RG6
- Your cable run exceeds 200 ft (60 m) – up to 600 ft (180 m) for analog or HD‑over‑coax.
- You are installing HD‑TVI, HD‑CVI, AHD, or 4K cameras (these require lower signal loss).
- You are running satellite or cable TV signals (higher frequencies).
- The cable path runs near power lines, motors, or other sources of interference (better shielding helps).
- You want to future‑proof for possible camera upgrades.
Signal Loss Example: Why Distance Matters
Imagine a 400‑foot (120 m) run from a 4K HD‑TVI camera to the DVR. Using RG59, the signal may drop below acceptable levels, causing image sparkles or complete loss. RG6, with its thicker center conductor, will deliver a clean signal at the same distance. For modern HD‑over‑coax systems, RG6 is strongly recommended even for medium runs.
Connector Compatibility
RG59 and RG6 use the same 75‑ohm impedance, but their connector types differ slightly due to cable diameter. Many modern BNC, RCA, and F‑connectors are designed to work with both (using a stepped ferrule). However, always check your connector packaging: "RG6‑compatible" connectors may not fit RG59 snugly, and vice versa. For best results, use connectors specifically rated for your cable type.
Other Coaxial Variants (RG11, RG58, etc.)
For very long runs (over 600 ft), you may need RG11, which is even thicker and lower loss. But for 90% of CCTV and antenna projects, RG6 is the sweet spot. RG58 is 50‑ohm and used for radio/ethernet – not compatible with video systems.
Your Coaxial Cable Partner
At Shenzhen Xunyu Cable Technology Co.,ltd., we manufacture both RG59 and RG6 coaxial cables, whether you need a bulk spool for a large security camera project or custom lengths for satellite installs, we deliver consistent quality at factory‑direct prices.
Not sure which coax is right for your next job? Contact our team for free guidance, samples, or a bulk quote. We'll help you get the signal where it needs to go.
WhatsApp / WeChat：+86 18925240250
Published on April 20, 2026 – Clear signals, solid choices.
